產品特色 產品應用 產品規格 產品清單






產品特色










產品應用


















產品規格

•

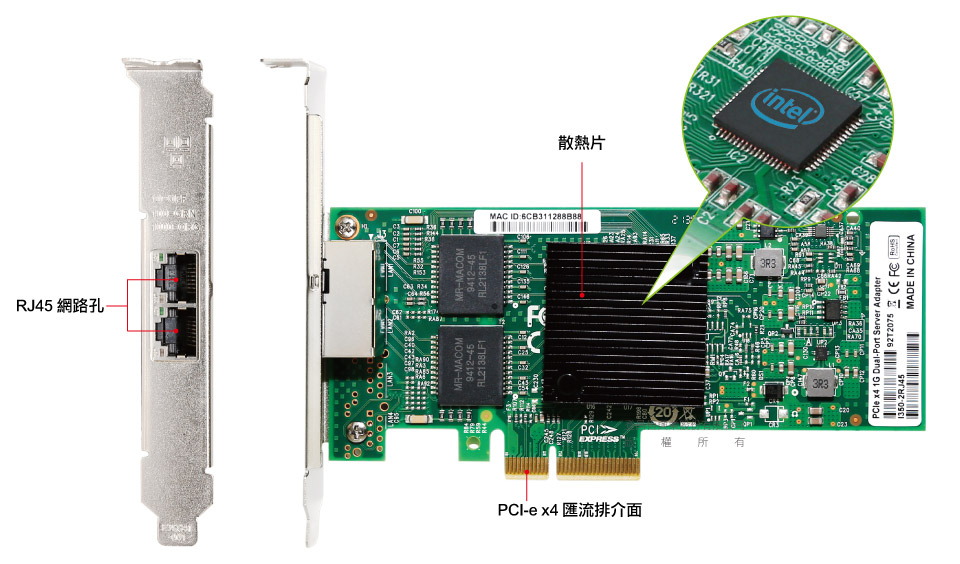

Controller:Intel I350AM2
•
Bus type: x4lane PCI Express 2.1 (5 GT/s)
•

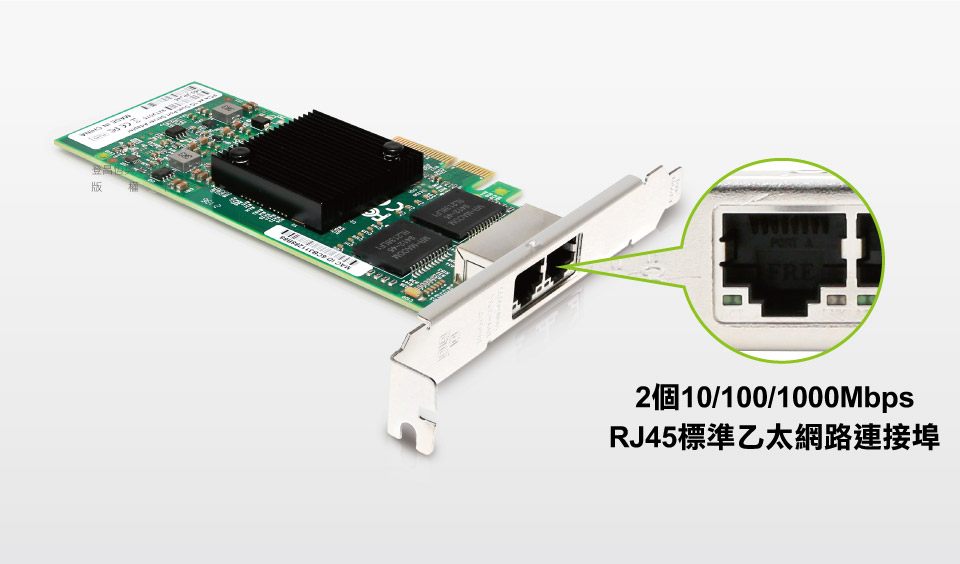

Ethernet ports: 1000Base-T Dualports
•
Data rate supported per port: 10/100/1000 Mbps
•
IEEE 802.3 auto-negotiation
•
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
•
Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex
•
IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
•
Automatic cross-over detection function (MDI/MDI-X)
•
IEEE 1588 protocol and 802.1AS implementation
•
Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
•
Scalable iSCSI performance delivering cost-effective SAN connectivity
•
Management Component Transport Protocol (MCTP)
•
Firmware Based Thermal Management
•
IEEE 802.3 MII Management Interface
•
MAC/PHY Control and Status
•
Watchdog timer
•
Extended error reporting
•
Controller Memory Protection
•
Vital Product Data (VPD) Support
•
Support for PCI-SIG SR-IOV specification
•
Transmit Segmentation Offloading (TSO)
•
Legacy and Message Signal Interrupt (MSI) Modes
•
Message Signal Interrupt Extension (MSI-X)
•
Intelligent interrupt generation
•
Support for packets up to 9.5K Bytes ( Jumbo Frames)
•
Plug and play specification support
•
Intel I/O Acceleration Technology (Intel I/OAT)
•

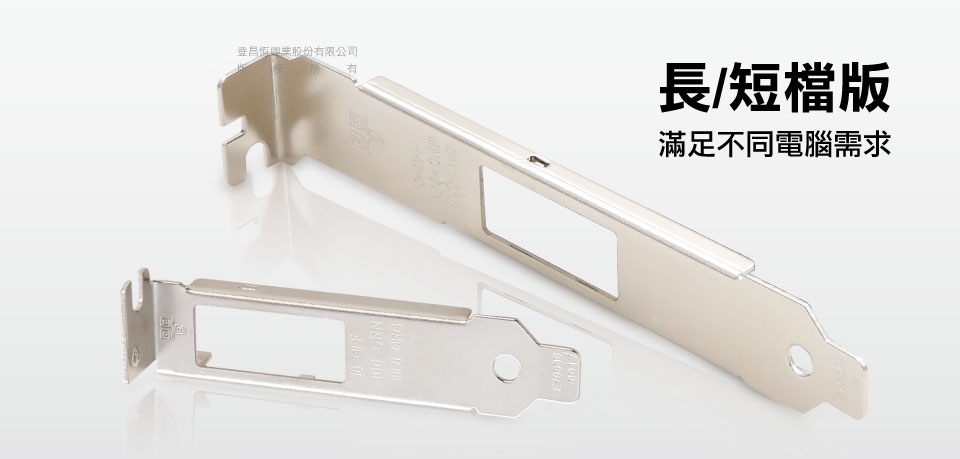

Ships with full-height bracket installed; low-profile bracket included in package
•
Power consumption (typical): 6.0 W
•
Storage temperature: -40 to 70 Centigrade
•
Operating temperature :0 to 55 Centigrade
•
Storage humidity: 90% non-condensing relative humidity at 35 Centigrade











產品清單

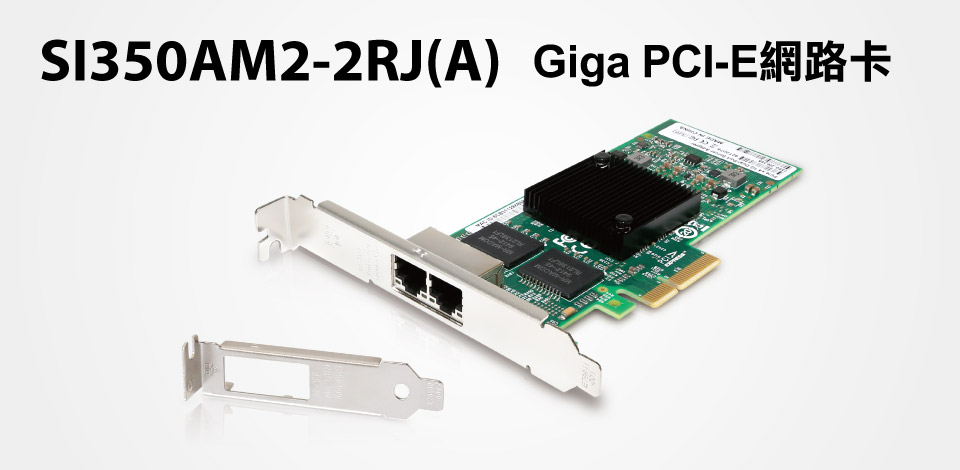

SI350AM2-2RJ (A)本體 x1 短擋板 x1 驅動光碟 x1 產品保證卡 x1


※使用手冊中所提到的產品規格及配件僅供參考,若有更動恕不另行通知,登昌恆保有變更產品設計、配件及驅動程式修改的權利。
