| 產品特色 | 產品應用 | 產品規格 | 選購指南 | 產品清單 |
產品特色
產品應用
產品規格
|
•
|

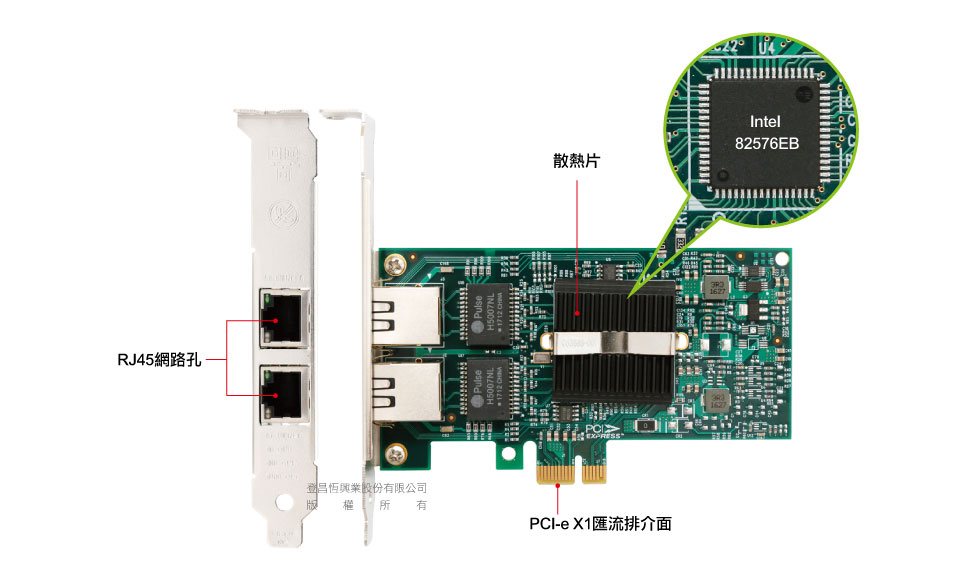

Controller:Intel 82576EB |
|
•
|
Bus type: x1lane PCI Express 1.1(2.5GT/s) |
|
•
|

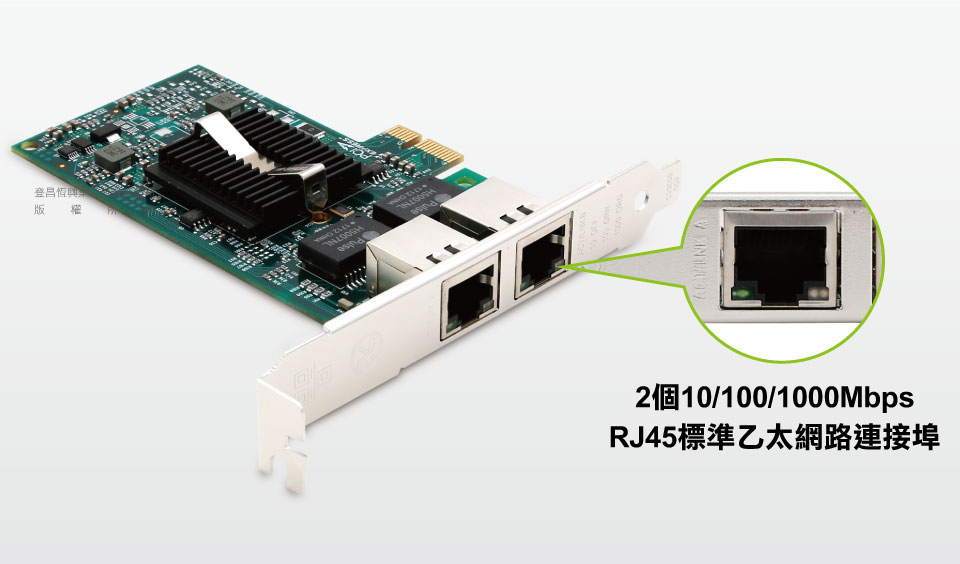

Ethernet ports: 1000Base-T Dualports |
|
•
|
Data rate supported per port: 10/100/1000 Mbps |
|
•
|
MSI-X support |
|
•
|
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading(IPv4, IPv6) capabilities |
|
•
|
Tx TCP segmentation offload (IPv4, IPv6) |
|
•
|
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux-environments (IPv4, IPv6, TCP/UDP) |
|
•
|
Virtual Machine Device queues2 (VMDq) |
|
•
|
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags |
|
•
|
PC-SIG SR-IOV Implementation(8 virtual functions per port) |
|
•
|
Preboot eXecution Environment (PXE) Support |
|
•
|
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) StatisticCounters> |
|
•
|
Wake-on-LAN support |
|
•
|
iSCSI Boot |
|
•
|
Watchdog Timer |
|
•
|
IEEE 1588 precision time control protocol |
|
•
|
Optimized for virtualized environments |
|
•
|
Flexibility with iSCSI Boot |
|
•
|
Plug and play specification support |
|
•
|
Intel I/O Acceleration Technology (Intel I/OAT) |
|
•
|

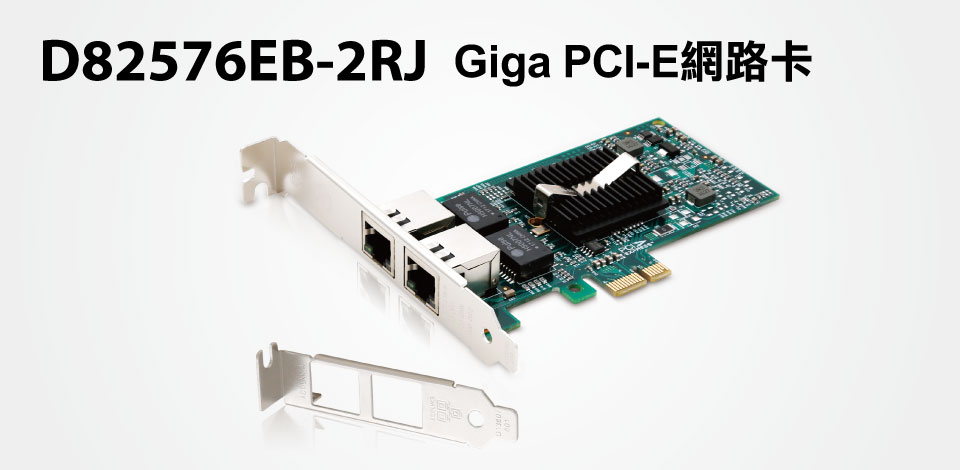

Ships with full-height bracket installed; low-profile bracket included in package |
|
•
|
Power consumption (typical): 4.0 W |
|
•
|
Storage temperature: -40 to 65Centigrade |
|
•
|
Operating temperature :0 to 50Centigrade |
|
•
|
Storage humidity: 90% non-condensing relative humidity at 35 Centigrade |
下載驅動程式
於Intel官網下載最新的驅動程式：
1.前往Intel官網：https://downloadcenter.intel.com/zh-tw
2.輸入產品Intel主晶片的型號。
3.點擊「搜尋」，即可下載最新的驅動程式。
選購指南
| 本體圖片 |
型號 |
晶片 | 匯流排介面 | 接頭 | 埠數 | 資料傳輸率 |
 |
DI210AT-1RJ | Intel I210AT | PCIe 2.1 x1 | RJ45 | 1 | 1000Mbps |
 |
D82574-1RJ | Intel 82574L | PCIe 1.1 x1 | RJ45 | 1 | 1000Mbps |
 |
D82576EB-2RJ | Intel 82576EB | PCIe 1.1 x1 | RJ45 | 2 | 1000Mbps |
 |
I82540EM-1RJ | Intel 82540EM | PCI 32-bit | RJ45 | 1 | 1000Mbps |
| 本體圖片 |
型號 |
晶片 | 匯流排介面 | 接頭 | 埠數 | 資料傳輸率 |
 |
S82576EB-2RJ | Intel 82576EB | PCIe 2.0 x4 | RJ45 | 2 | 1000Mbps |
 |
SI350AM2-2RJ | Intel I350AM2 | PCIe 2.1 x4 | RJ45 | 2 | 1000Mbps |
 |
SI350AM4-4RJ | Intel I350AM4 | PCIe 2.1 x4 | RJ45 | 4 | 1000Mbps |
 |
S82580EB-4RJ | Intel 82580EB | PCIe 2.0 x4 | RJ45 | 4 | 1000Mbps |
| 本體圖片 |
型號 |
晶片 | 匯流排介面 | 接頭 | 埠數 | 資料傳輸率 |
 |
SX540AT2-1RJ | Intel X540AT2 | PCIe 2.0 x8 | RJ45 | 1 | 10Gbps |
 |
SX540AT2-2RJ | Intel X540AT2 | PCIe 2.0 x8 | RJ45 | 2 | 10Gbps |
 |
SX550AT2-2RJ | Intel X550AT2 | PCIe 3.0 x4 | RJ45 | 2 | 10Gbps |
產品清單
 |
 |
 |
 |
||
| D82576EB-2RJ本體 x1 | 短檔板 x1 | 驅動光碟 x1 | 產品保證卡 x1 |
※使用手冊中所提到的產品規格及配件僅供參考，若有更動恕不另行通知，登昌恆保有變更產品設計、配件及驅動程式修改的權利。
